Adjustable Dc Voltage Regulator

f:id:ammar2811:20161114164130j:plain

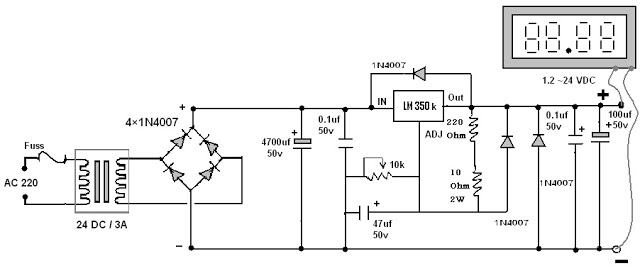

About adjustable dc voltage regulator design

You will be able to edit output voltage by Variable resistance in the circuit, and the range of DC voltage regulator is 1.2 volt to 24 volt.

The voltage regulator need voltage source 220v to work, and in this circuit we will use lm 350 k, the current of lm 350 k is 3A.

f:id:ammar2811:20161114164041j:plain
